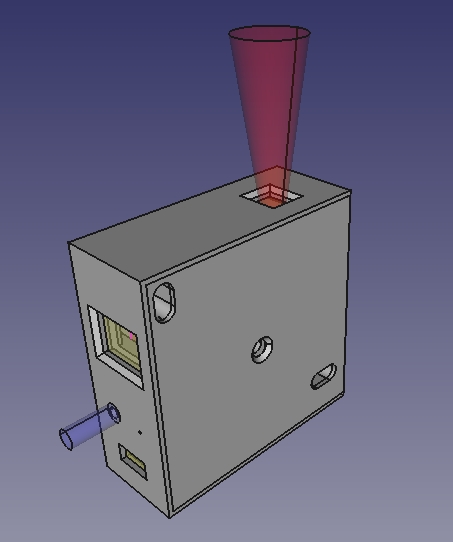

COLOUR SENSOR

 Sensor identifies all basic colours of light (RGB) and intensity. It can later calculate the mix of colours on sensor itself and then sets outputs according to specifications, which a user can set for each output. For example: OUT0 is activated when colour mix is 10-50-10 (RGB, in %) and OUT1 when 50-10-10. The settings can be done via learning or absolute value.

All settings are done via console on USB  port.

This sensor is successfully used in car lights EOL units.

For more information please contact info@iskrapro.si

Type:

SC1

Measures:

50 x 50 x 20 mm

Power supply:

10 – 24V

Power:

< 2W

Sensor type:

RGB + intensity

Sensibility:

5 lx

Nonlinearity:

0,5%

Temperature of environment:

-30 .. +50 g.C

Measuring reference:

10.000 lx, 6.000K

Number of digital outs:

3

Type of digital out:

Negate OC

Max allowed values on out:

70V max,

40mA max,

No galvanic isolation!

Output update:

50ms min (settable)

Wire colours W1:

Blue .. GND

Brown .. +V

Black .. signal (o0)

W2:

Blue .. signal (o2)

Brown ..

Black .. signal (o1)

Setting and programming:

USB
